Custom Steel Structures & Prefabricated Houses: From Concept to Global Delivery
Welcome to our Project Showcase. Here, you will find a wide range of prefabricated steel buildings, modular houses, portable container units, and hybrid commercial structures tailored for international clients. Browse our engineered designs below—from heavy-duty steel warehouses to fast-deploy prefab houses—or send us your own CAD floor plans to start your custom project today.
️ Title & Subtitle
Title: Heavy Duty Prefab Steel Frame: Custom Industrial Garage / Storage Building
Subtitle: Engineered for severe climates with high snow & wind load resistance (Canada Market Standard).
Project Overview
Target Market: Canada (Built according to National Building Code of Canada - NBC)
Building Type: Prefabricated Structural Steel Garage / Workshop / Storage Facility

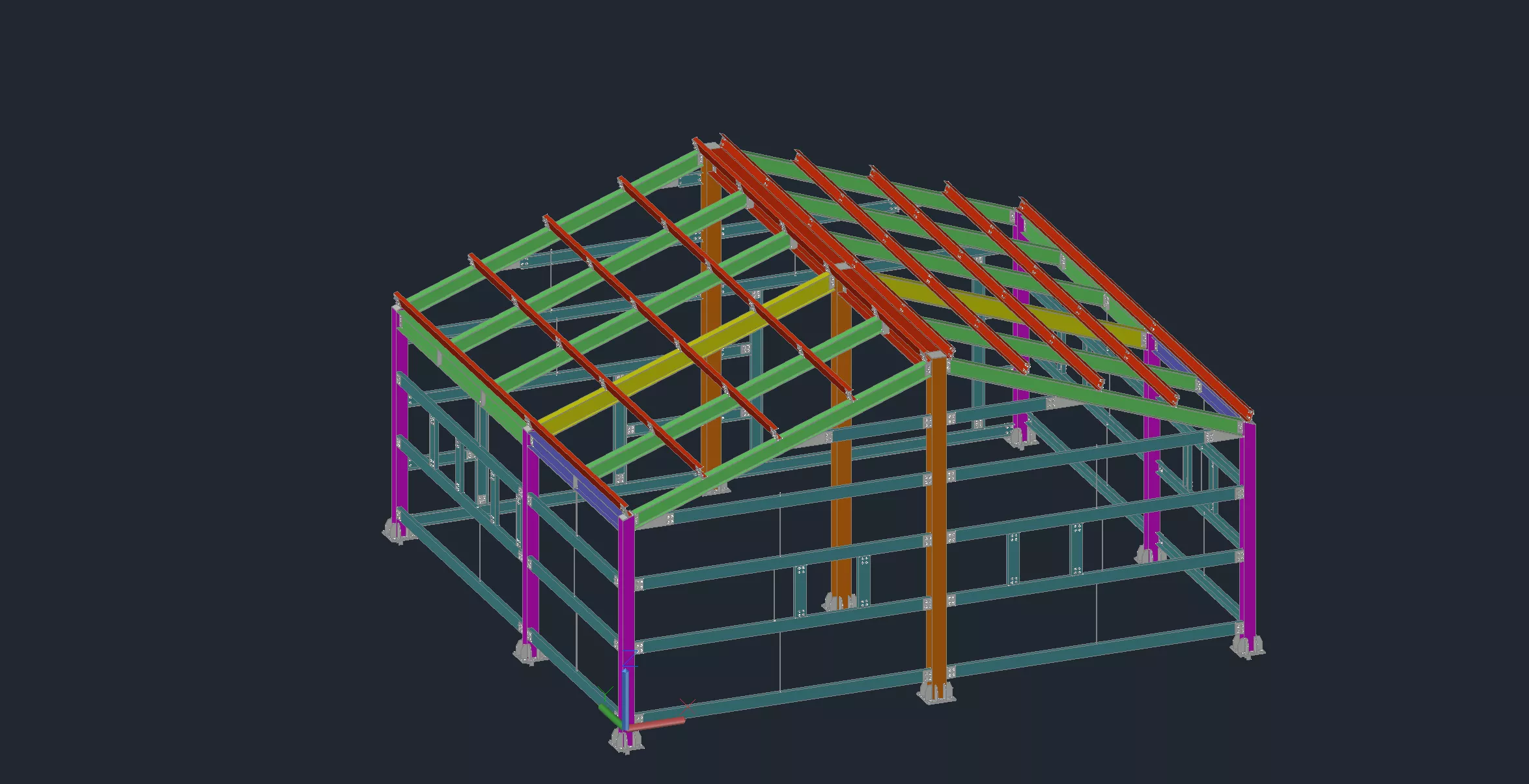

Structural System: Heavy-Duty Portal Frame & Purlin System (3D Tekla Engineered)
Core Advantages: High Snow Load Capacity, 100% Bolted Assembly, Extreme Weather Resilience
Technical & Structural Highlights
Precision-engineered to withstand North American winter conditions:
Heavy-Duty Load Design: Pitch roof geometry designed for optimal snow shedding and heavy snow load compliance (3.0–5.0 kPa customizable).
Robust Steel Framing: High-strength structural steel columns, rafters, and girts pre-drilled for fast site erection.
100% Bolted Connections: All main frames, roof purlins, and wall girts are assembled with high-strength bolts—no on-site welding required in sub-zero temperatures.
Insulated Cladding Compatible: Fully compatible with thick Polyurethane (PU) / Mineral Wool sandwich panels to ensure thermal insulation in extreme cold.
️ Our Supply Scope & Engineering Capability
Complete Structural Kit: Primary steel frame, secondary purlins, anchor bolts, high-strength connection bolts, and edge flashing accessories.
Full Engineering Package: 3D Tekla BIM modeling, detailed fabrication drawings, and stamped structural calculations.
Prefabricated Precision: Factory CNC cutting, drilling, and hot-dip galvanizing / anti-corrosion painting for maximum durability.
️ Title & Subtitle

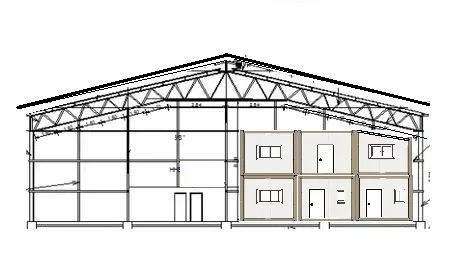

Title: Large-Span Steel Truss Shed with Integrated Modular Office Units
Subtitle: Hybrid structural steel solution combining heavy-duty warehouse shell and two-storey modular interior offices.
Project Overview

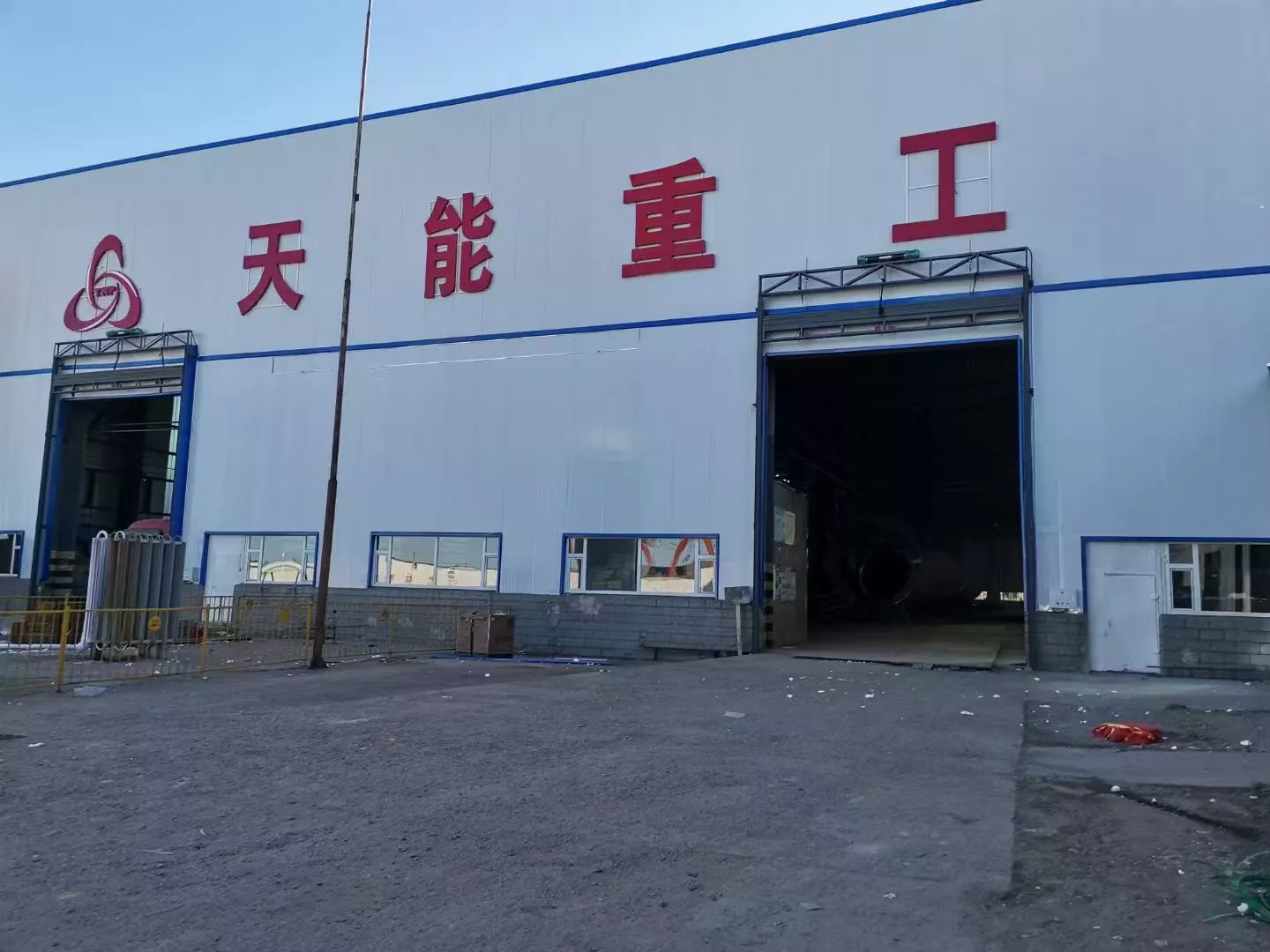

Building Type: Industrial Warehouse / Factory with Internal Integrated Office Units
Structural System: Large-Span Roof Truss Steel Structure + Two-Storey Container / Modular Units
Key Features: Weatherproof Outer Shell, Independent Climate-Controlled Interior Workspace, Cost-Effective Dual LayoutTarget Application: Industrial Warehouses, Logistics Hubs, Mining Camp Facilities & Factory Administration
Technical & Structural Highlights
Innovative hybrid layout maximizing operational efficiency and thermal comfort:
Heavy-Duty Roof Truss System: Clear-span steel truss framework providing maximum open floor area for industrial storage, manufacturing, or machinery.
Integrated Two-Storey Modular Office: Built-in 2-level modular container units offering quiet, dust-proof, and climate-controlled environments for office, meeting, and welfare facilities.
Optimized Space Utilization: Seamlessly integrates administrative/living functions within the main industrial building envelope, reducing overall land footprint and energy consumption.
Double Weather Protection: The heavy steel roof shell protects internal modular units from extreme outdoor weather, snow loads, and direct solar heating.
️ Our Supply Scope & Engineering Capability
Steel Truss & Structural Frame: Pre-engineered steel roof trusses, H-section columns, purlins, and insulated roof panels.
Modular Container Office Units: Fully pre-fabricated container frames, sandwich wall panels, insulated doors/windows, and pre-wired electrical systems.
Turnkey Hybrid Package: One-stop structural calculation, factory pre-fabrication, and fast-erection assembly guidance.
️ Title & Subtitle
Title: Multi-Storey Prefab Steel Structure: Mixed-Use Restaurant & Hostel Building
Subtitle: Flexible, high-strength structural steel solution for commercial urban developments.
Project Overview
Building Type: Multi-Storey Commercial Steel Building (Hospitality & Dining)
Dimensions & Area:$12.2\text{m} \times 32.3\text{m}$ (Two Storeys, Approx. 800 m²)
Structural System: Engineered Structural Steel Portal / Frame System

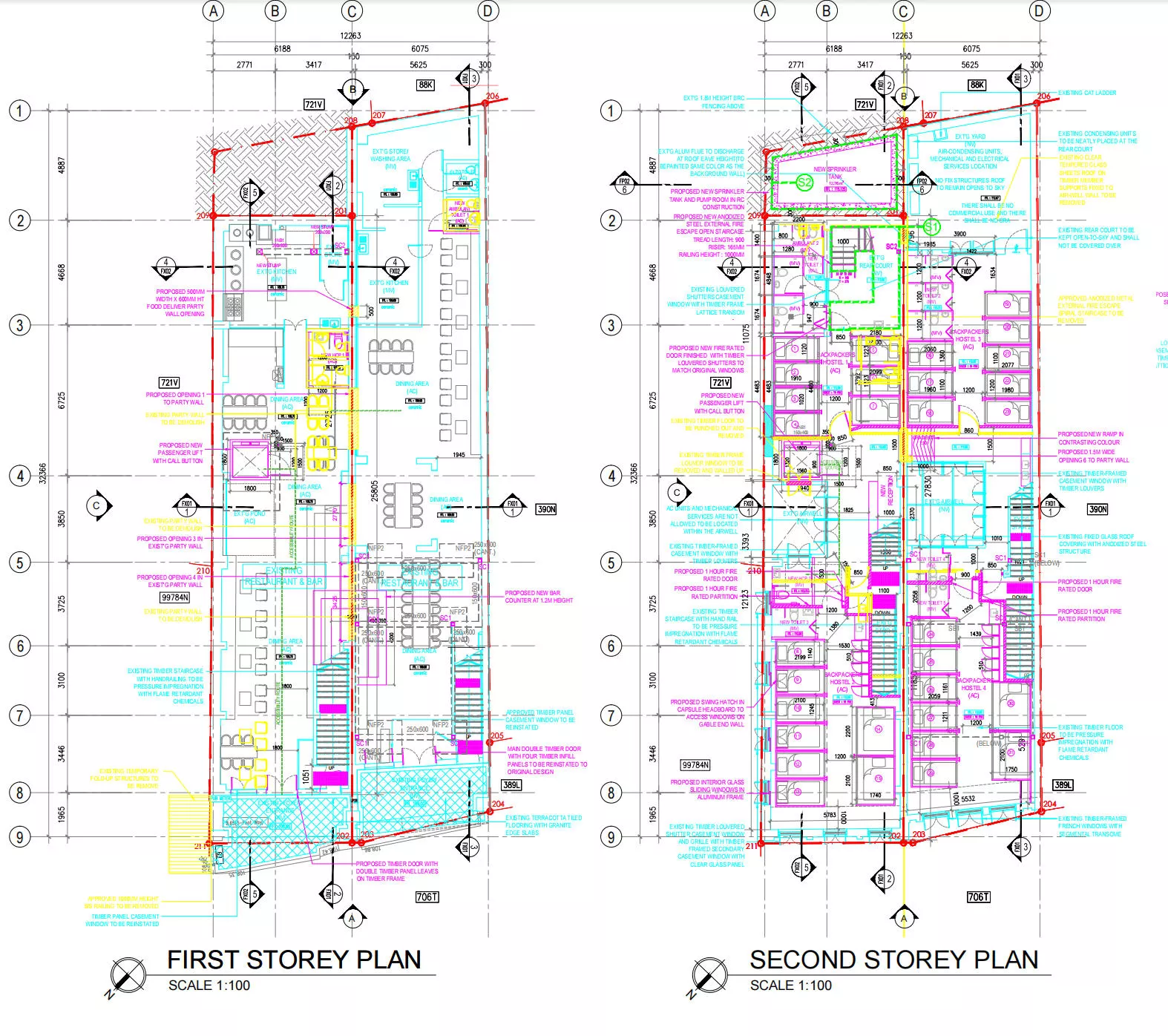

Functional Layout: 1st Floor Restaurant & Bar | 2nd Floor Capsule Hostel Dormitories
Technical Highlights & Structural Design
Maximizing usable interior space while ensuring high structural stability & fire safety:
Large-Span Steel Structure: Clear-span steel framing on the 1st floor to maximize open dining space without obstructive load-bearing columns.
Modular Multi-Room Layout: 2nd floor optimized for high-density backpackers accommodation with integrated fire-rated partition walls.
Structural Safety & Compliance: Designed with 1-hour fire-rated steel coating, integrated emergency fire escapes, and acoustic floor decking.
️ Our Prefab Supply & Engineering Capability
Structural Steel Package: Beams, columns, floor decking plates, fireproof wall cladding, and commercial SPC flooring.
Custom Engineering (BIM/CAD): Complete structural calculation and detailing to comply with local building codes.
Turnkey Export Solution: Bolted connection design—no on-site welding required, allowing fast bolt-together erection.
️ Title & Subtitle
Title: Prefabricated Steel Structure Solution: Modular Field Medical Station
Subtitle: Fast-deployable, heavy-duty modular steel building tailored for remote industrial complexes.
Project Overview
Building Type: Modular Prefabricated Medical Station / Healthcare Facility
Dimensions & Area:$30\text{m} \times 18\text{m}$ (Approx. 540 m²)
Structural System: Light Gauge Steel (LGS) Frame / Heavy Structural Steel
Key Features: Rapid On-Site Assembly, High Thermal Insulation, Hygienic Medical Layout
Technical Highlights & Structural Design
Engineered to meet international modular building and medical safety standards:
Robust Steel Framing: Anti-corrosion galvanized steel structure built for harsh remote environments and long service life ($50+$ years).
Medical Functional Layout: Integrated Isolation Wards, Emergency Rooms, Telemedicine Hub, and Air-Ventilation Chambers.
Insulation & Enclosure: High-density PU/Rookwool sandwich wall panels providing superior thermal efficiency, noise reduction, and fire resistance.
️ Our Prefab Supply & Engineering Capability
Complete Prefab Kit: Primary steel frame, insulated wall/roof panel systems, pre-fitted doors/windows, and anti-bacterial flooring.
Pre-Engineered Precision: Factory pre-fabricated elements ensuring $95\%$ of work is completed before shipping, drastically reducing on-site labor.
Global Logistics & Guidance: Flat-pack container loading with step-by-step 3D assembly drawings and installation support.
